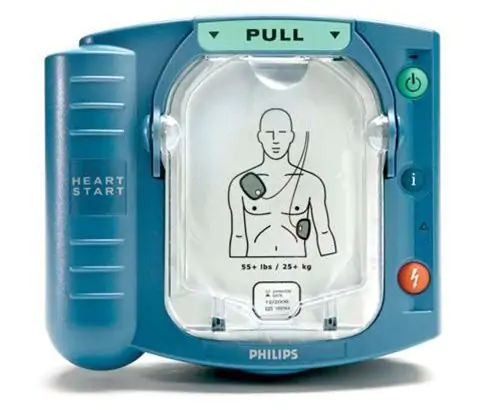

Philips HeartStart HS1 AED Defibrillator

The Philips HeartStart HS1 AED Defibrillator is a compact and easy-to-use automated external defibrillator designed to provide clear voice guidance during sudden cardiac emergencies. With SMART Analysis Technology, CPR guidance, and quick shock delivery, the HS1 helps guide users through the steps of responding to sudden cardiac arrest.

Key Features

Real-Time Voice Guidance – Clear step-by-step instructions during AED use.
CPR Guidance – Provides coaching to help users perform CPR effectively.
SMART Analysis Technology – Automatically analyzes the patient’s heart rhythm and determines whether a shock is advised.
Quick Shock Delivery – Designed for rapid shock delivery after CPR intervals.
Lightweight & Portable – Weighing approximately 1.5 kg with battery and pads installed.
Easy to Operate – Suitable for trained responders and users with limited AED experience.
Automatic Self-Tests – Performs regular self-tests to check device readiness.
Long Standby Battery Life – Battery provides approximately 4 years of standby life under recommended conditions.
Adult & Pediatric Compatibility – Supports adult use with standard SMART Pads and pediatric use with the optional Infant/Child SMART Pads cartridge.
SMART Biphasic Technology – Uses a biphasic defibrillation waveform.
Ready to Use – Supplied with battery and adult SMART Pads cartridge installed.

Specification	Details
Product Type	Automated External Defibrillator (AED)
Model	HeartStart HS1
Brand	Philips
Weight	Approx. 1.5 kg / 3.3 lbs
Dimensions	7 × 19 × 21 cm
Waveform	SMART Biphasic
Adult Energy Output	150 Joules
Pediatric Energy Output	50 Joules with Infant/Child SMART Pads cartridge
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Humidity	0% to 95%, non-condensing
Self-Test Frequency	Daily, weekly & monthly
Adult Pads	M5071A SMART Pads cartridge
Pediatric Pads	M5072A Infant/Child SMART Pads cartridge – optional
Adult Patient Compatibility	Over 8 years / 25 kg and above
Pediatric Compatibility	0–8 years / under 25 kg with optional pediatric cartridge
Shock-to-Shock Cycle	Typically less than 20 seconds
Quick Shock	Typically approximately 8 seconds after CPR interval
Battery Type	Disposable long-life lithium manganese dioxide battery
Battery Capacity	Minimum 200 shocks or 4 hours operating time
Typical Standby Life	Up to approximately 4 years

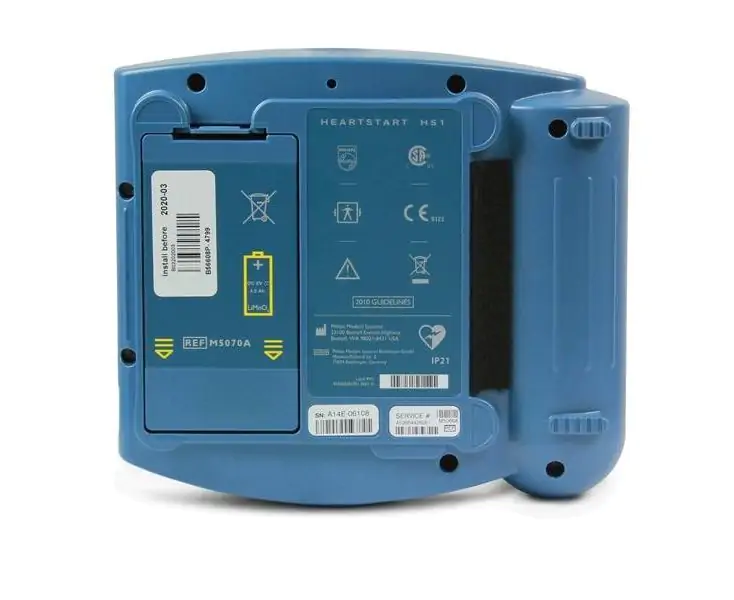

Battery Specifications

Battery Type: Disposable long-life lithium manganese dioxide primary battery
Voltage: 9V DC
Capacity: 4.2 Ah
Capacity: Minimum 200 shocks or approximately 4 hours of operating time
Typical Standby Life: Up to approximately 4 years when properly installed, stored and maintained
Battery: Pre-installed

SMART Pads Specifications

Adult SMART Pads – M5071A

Designed for patients over 8 years of age or 25 kg (55 lbs) and above
Active surface area: approximately 85 cm² each
Cable length: approximately 137.1 cm / 54 inches

Infant/Child SMART Pads – M5072A

Optional pediatric SMART Pads cartridge
Designed for children 0–8 years of age and under 25 kg (55 lbs)
Cable length: approximately 101.6 cm / 40 inches
Pediatric energy output: 50 Joules

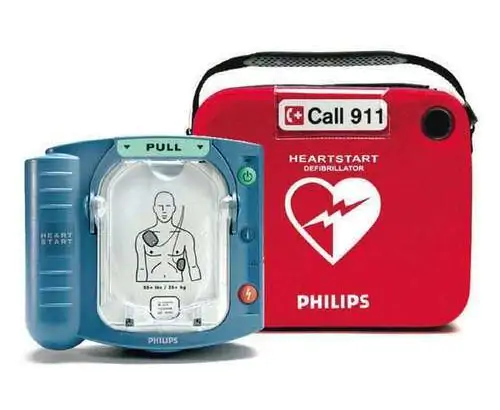

Box Contents

Philips HeartStart HS1 AED Defibrillator
1 × Pre-installed battery
1 × Adult SMART Pads cartridge
Set-up and maintenance guide
Expiration date tags
Owner’s manual

Used For

The Philips HeartStart HS1 AED is designed for use during sudden cardiac arrest (SCA) emergencies to analyze the patient’s heart rhythm and, when appropriate, deliver an electrical shock.

It can be used in:

Hospitals and healthcare facilities
Clinics and medical centres
Ambulances and emergency response teams
Offices and corporate workplaces
Schools and educational institutions
Hotels and resorts
Shopping malls and public spaces
Gyms and fitness centres
Airports and transportation facilities
Industrial and commercial workplaces
Community emergency response locations
Homes and residential environments where an AED is appropriate

Long Description

The Philips HeartStart HS1 AED Defibrillator is designed to provide simple, guided support during a sudden cardiac arrest emergency. Its intuitive operation and real-time voice instructions help guide the user through the process, from applying the SMART Pads to performing CPR and following the device’s prompts.

The HS1 uses SMART Analysis Technology to assess the patient’s heart rhythm and determine whether a defibrillation shock is appropriate. This helps ensure that a shock is delivered only when indicated by the device’s analysis.

Its SMART Biphasic waveform technology provides defibrillation therapy, while the device’s CPR guidance helps users follow the recommended sequence during an emergency. The compact and lightweight design also makes the HS1 convenient for placement in locations where rapid access to an AED is important.

The device performs automatic self-tests at regular intervals to monitor its readiness and provides maintenance-related indications when attention is required. With an installed long-life battery and adult SMART Pads cartridge, the unit can be kept ready for emergency use.

For pediatric patients, the optional Infant/Child SMART Pads cartridge can be used according to the manufacturer’s instructions.

Why Choose Philips HeartStart HS1?

Simple and guided AED operation
Clear voice instructions
CPR coaching
Automatic heart rhythm analysis
Fast shock delivery
Compact and lightweight design
Automatic readiness self-tests
Adult and pediatric pad options
Suitable for professional and public-access environments
Trusted Philips HeartStart AED platform

Product Highlights

Brand: Philips
Model: HeartStart HS1
Category: AED / Automated External Defibrillator
Technology: SMART Biphasic
Adult Energy: 150 J
Pediatric Energy: 50 J with optional pediatric cartridge
Weight: Approx. 1.5 kg
Adult Pads: M5071A
Pediatric Pads: M5072A – Optional
